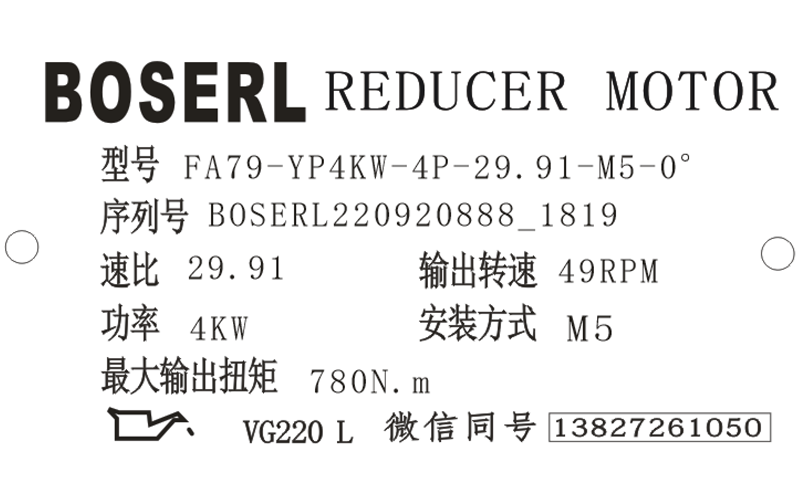

FA79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F79減速機選型樣本。

FA79-YP4KW-4P-29.91-M5-0°

FA：系列代號

79：減速機規格代號

YP：電機

4KW：電機功率

4P：電機級數

29.91：減速機傳動比

M5：減速機安裝位置

0°：接線盒位置

FA79減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA79減速機的扭力臂安裝示意圖：齒輪減速電機

FA79減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA79減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA79減速機型號：

AFA77-Y0.18KW，AFA77-Y0.25KW，AFA77-Y0.37KW，AFA77-Y0.55KW，AFA77-Y0.75KW，AFA77-Y1.1KW，AFA77-Y1.5KW，AFA77-Y100M4，AFA77-Y112M4，AFA77-Y11KW，AFA77-Y132M4，AFA77-Y160M4，AFA77-Y2.2KW，AFA77-Y3KW，AFA77-Y4KW，AFA77-Y5.5KW，AFA77-Y63M4，AFA77-Y7.5KW，AFA77-Y71M4，AFA77-Y80M4，AFA77-Y90M4，AFA77-YB100M4，AFA77-YB112M4，AFA77-YB132M4，AFA77-YB160M4，AFA77-YB63M4，AFA77-YB71M4，AFA77-YB80M4，AFA77-YB90M4，AFA77-YDP100M4，AFA77-YDP112M4，AFA77-YDP132M4，AFA77-YDP160M4，AFA77-YDP63M4，AFA77-YDP71M4，AFA77-YDP80M4，AFA77-YDP90M4，AFA77-YE100M4，AFA77-YE112M4，AFA77-YE132M4，AFA77-YE160M4，AFA77-YE63M4，AFA77-YE71M4，AFA77-YE80M4，AFA77-YE90M4，AFA77-YEJ100M4，AFA77-YEJ112M4，AFA77-YEJ132M4，AFA77-YEJ160M4，AFA77-YEJ63M4，AFA77-YEJ71M4，AFA77-YEJ80M4，AFA77-YEJ90M4，AFA77-YEJB100M4，AFA77-YEJB112M4，AFA77-YEJB132M4，AFA77-YEJB160M4，AFA77-YEJB63M4，AFA77-YEJB71M4，AFA77-YEJB80M4，AFA77-YEJB90M4，AFA77-YP100M4，AFA77-YP112M4，AFA77-YP132M4，AFA77-YP160M4，AFA77-YP63M4，AFA77-YP71M4，AFA77-YP80M4，AFA77-YP90M4，AFA77-YPB100M4，AFA77-YPB112M4，AFA77-YPB132M4，AFA77-YPB160M4，AFA77-YPB63M4，AFA77-YPB71M4，AFA77-YPB80M4，AFA77-YPB90M4，AFA77-YPE100M4，AFA77-YPE112M4，AFA77-YPE132M4，AFA77-YPE160M4，AFA77-YPE63M4，AFA77-YPE71M4，AFA77-YPE80M4，AFA77-YPE90M4，AFA77-YS100M4，AFA77-YS112M4，AFA77-YS132M4，AFA77-YS160M4，AFA77-YS63M4，AFA77-YS71M4，AFA77-YS80M4，AFA77-YS90M4，AFA77-YVB100M4，AFA77-YVB112M4，AFA77-YVB132M4，AFA77-YVB160M4，AFA77-YVB63M4，AFA77-YVB71M4，AFA77-YVB80M4，AFA77-YVB90M4，AFA77-YVP100M4，AFA77-YVP112M4，AFA77-YVP132M4，AFA77-YVP160M4，AFA77-YVP63M4，AFA77-YVP71M4，AFA77-YVP80M4，AFA77-YVP90M4，AFA77-YVPEJ100M4，AFA77-YVPEJ112M4，AFA77-YVPEJ132M4，AFA77-YVPEJ160M4，AFA77-YVPEJ63M4，AFA77-YVPEJ71M4，AFA77-YVPEJ80M4，AFA77-YVPEJ90M4，NFA77-Y0.18KW，NFA77-Y0.25KW，NFA77-Y0.37KW，NFA77-Y0.55KW，NFA77-Y0.75KW，NFA77-Y1.1KW，NFA77-Y1.5KW，NFA77-Y100M4，NFA77-Y112M4，NFA77-Y11KW，NFA77-Y132M4，NFA77-Y160M4，NFA77-Y2.2KW，NFA77-Y3KW，NFA77-Y4KW，NFA77-Y5.5KW，NFA77-Y63M4，NFA77-Y7.5KW，NFA77-Y71M4，NFA77-Y80M4，NFA77-Y90M4，NFA77-YB100M4，NFA77-YB112M4，NFA77-YB132M4，NFA77-YB160M4，NFA77-YB63M4，NFA77-YB71M4，NFA77-YB80M4，NFA77-YB90M4，NFA77-YDP100M4，NFA77-YDP112M4，NFA77-YDP132M4，NFA77-YDP160M4，NFA77-YDP63M4，NFA77-YDP71M4，NFA77-YDP80M4，NFA77-YDP90M4，NFA77-YE100M4，NFA77-YE112M4，NFA77-YE132M4，NFA77-YE160M4，NFA77-YE63M4，NFA77-YE71M4，NFA77-YE80M4，NFA77-YE90M4，NFA77-YEJ100M4，NFA77-YEJ112M4，NFA77-YEJ132M4，NFA77-YEJ160M4，NFA77-YEJ63M4，NFA77-YEJ71M4，NFA77-YEJ80M4，NFA77-YEJ90M4，NFA77-YEJB100M4，NFA77-YEJB112M4，NFA77-YEJB132M4，NFA77-YEJB160M4，NFA77-YEJB63M4，NFA77-YEJB71M4，NFA77-YEJB80M4，NFA77-YEJB90M4，NFA77-YP100M4，NFA77-YP112M4，NFA77-YP132M4，NFA77-YP160M4，NFA77-YP63M4，NFA77-YP71M4，NFA77-YP80M4，NFA77-YP90M4，NFA77-YPB100M4，NFA77-YPB112M4，NFA77-YPB132M4，NFA77-YPB160M4，NFA77-YPB63M4，NFA77-YPB71M4，NFA77-YPB80M4，NFA77-YPB90M4，NFA77-YPE100M4，NFA77-YPE112M4，NFA77-YPE132M4，NFA77-YPE160M4，NFA77-YPE63M4，NFA77-YPE71M4，NFA77-YPE80M4，NFA77-YPE90M4，NFA77-YS100M4，NFA77-YS112M4，NFA77-YS132M4，NFA77-YS160M4，NFA77-YS63M4，NFA77-YS71M4，NFA77-YS80M4，NFA77-YS90M4，NFA77-YVB100M4，NFA77-YVB112M4，NFA77-YVB132M4，NFA77-YVB160M4，NFA77-YVB63M4，NFA77-YVB71M4，NFA77-YVB80M4，NFA77-YVB90M4，NFA77-YVP100M4，NFA77-YVP112M4，NFA77-YVP132M4，NFA77-YVP160M4，NFA77-YVP63M4，NFA77-YVP71M4，NFA77-YVP80M4，NFA77-YVP90M4，NFA77-YVPEJ100M4，NFA77-YVPEJ112M4，NFA77-YVPEJ132M4，NFA77-YVPEJ160M4，NFA77-YVPEJ63M4，NFA77-YVPEJ71M4，NFA77-YVPEJ80M4，NFA77-YVPEJ90M4，SFA77-Y0.18KW，SFA77-Y0.25KW，SFA77-Y0.37KW，SFA77-Y0.55KW，SFA77-Y0.75KW，SFA77-Y1.1KW，SFA77-Y1.5KW，SFA77-Y100M4，SFA77-Y112M4，SFA77-Y11KW，SFA77-Y132M4，SFA77-Y160M4，SFA77-Y2.2KW，SFA77-Y3KW，SFA77-Y4KW，SFA77-Y5.5KW，SFA77-Y63M4，SFA77-Y7.5KW，SFA77-Y71M4，SFA77-Y80M4，SFA77-Y90M4，SFA77-YB100M4，SFA77-YB112M4，SFA77-YB132M4，SFA77-YB160M4，SFA77-YB63M4，SFA77-YB71M4，SFA77-YB80M4，SFA77-YB90M4，SFA77-YDP100M4，SFA77-YDP112M4，SFA77-YDP132M4，SFA77-YDP160M4，SFA77-YDP63M4，SFA77-YDP71M4，SFA77-YDP80M4，SFA77-YDP90M4，SFA77-YE100M4，SFA77-YE112M4，SFA77-YE132M4，SFA77-YE160M4，SFA77-YE63M4，SFA77-YE71M4，SFA77-YE80M4，SFA77-YE90M4，SFA77-YEJ100M4，SFA77-YEJ112M4，SFA77-YEJ132M4，SFA77-YEJ160M4，SFA77-YEJ63M4，SFA77-YEJ71M4，SFA77-YEJ80M4，SFA77-YEJ90M4，SFA77-YEJB100M4，SFA77-YEJB112M4，SFA77-YEJB132M4，SFA77-YEJB160M4，SFA77-YEJB63M4，SFA77-YEJB71M4，SFA77-YEJB80M4，SFA77-YEJB90M4，SFA77-YP100M4，SFA77-YP112M4，SFA77-YP132M4，SFA77-YP160M4，SFA77-YP63M4，SFA77-YP71M4，SFA77-YP80M4，SFA77-YP90M4，SFA77-YPB100M4，SFA77-YPB112M4，SFA77-YPB132M4，SFA77-YPB160M4，SFA77-YPB63M4，SFA77-YPB71M4，SFA77-YPB80M4，SFA77-YPB90M4，SFA77-YPE100M4，SFA77-YPE112M4，SFA77-YPE132M4，SFA77-YPE160M4，SFA77-YPE63M4，SFA77-YPE71M4，SFA77-YPE80M4，SFA77-YPE90M4，SFA77-YS100M4，SFA77-YS112M4，SFA77-YS132M4，SFA77-YS160M4，SFA77-YS63M4，SFA77-YS71M4，SFA77-YS80M4，SFA77-YS90M4，SFA77-YVB100M4，SFA77-YVB112M4，SFA77-YVB132M4，SFA77-YVB160M4，SFA77-YVB63M4，SFA77-YVB71M4，SFA77-YVB80M4，SFA77-YVB90M4，SFA77-YVP100M4，SFA77-YVP112M4，SFA77-YVP132M4，SFA77-YVP160M4，SFA77-YVP63M4，SFA77-YVP71M4，SFA77-YVP80M4，SFA77-YVP90M4，SFA77-YVPEJ100M4，SFA77-YVPEJ112M4，SFA77-YVPEJ132M4，SFA77-YVPEJ160M4，SFA77-YVPEJ63M4，SFA77-YVPEJ71M4，SFA77-YVPEJ80M4，SFA77-YVPEJ90M4，WFA77-Y0.18KW，WFA77-Y0.25KW，WFA77-Y0.37KW，WFA77-Y0.55KW，WFA77-Y0.75KW，WFA77-Y1.1KW，WFA77-Y1.5KW，WFA77-Y100M4，WFA77-Y112M4，WFA77-Y11KW，WFA77-Y132M4，WFA77-Y160M4，WFA77-Y2.2KW，WFA77-Y3KW，WFA77-Y4KW，WFA77-Y5.5KW，WFA77-Y63M4，WFA77-Y7.5KW，WFA77-Y71M4，WFA77-Y80M4，WFA77-Y90M4，WFA77-YB100M4，WFA77-YB112M4，WFA77-YB132M4，WFA77-YB160M4，WFA77-YB63M4，WFA77-YB71M4，WFA77-YB80M4，WFA77-YB90M4，WFA77-YDP100M4，WFA77-YDP112M4，WFA77-YDP132M4，WFA77-YDP160M4，WFA77-YDP63M4，WFA77-YDP71M4，WFA77-YDP80M4，WFA77-YDP90M4，WFA77-YE100M4，WFA77-YE112M4，WFA77-YE132M4，WFA77-YE160M4，WFA77-YE63M4，WFA77-YE71M4，WFA77-YE80M4，WFA77-YE90M4，WFA77-YEJ100M4，WFA77-YEJ112M4，WFA77-YEJ132M4，WFA77-YEJ160M4，WFA77-YEJ63M4，WFA77-YEJ71M4，WFA77-YEJ80M4，WFA77-YEJ90M4，WFA77-YEJB100M4，WFA77-YEJB112M4，WFA77-YEJB132M4，WFA77-YEJB160M4，WFA77-YEJB63M4，WFA77-YEJB71M4，WFA77-YEJB80M4，WFA77-YEJB90M4，WFA77-YP100M4，WFA77-YP112M4，WFA77-YP132M4，WFA77-YP160M4，WFA77-YP63M4，WFA77-YP71M4，WFA77-YP80M4，WFA77-YP90M4，WFA77-YPB100M4，WFA77-YPB112M4，WFA77-YPB132M4，WFA77-YPB160M4，WFA77-YPB63M4，WFA77-YPB71M4，WFA77-YPB80M4，WFA77-YPB90M4，WFA77-YPE100M4，WFA77-YPE112M4，WFA77-YPE132M4，WFA77-YPE160M4，WFA77-YPE63M4，WFA77-YPE71M4，WFA77-YPE80M4，WFA77-YPE90M4，WFA77-YS100M4，WFA77-YS112M4，WFA77-YS132M4，WFA77-YS160M4，WFA77-YS63M4，WFA77-YS71M4，WFA77-YS80M4，WFA77-YS90M4，WFA77-YVB100M4，WFA77-YVB112M4，WFA77-YVB132M4，WFA77-YVB160M4，WFA77-YVB63M4，WFA77-YVB71M4，WFA77-YVB80M4，WFA77-YVB90M4，WFA77-YVP100M4，WFA77-YVP112M4，WFA77-YVP132M4，WFA77-YVP160M4，WFA77-YVP63M4，WFA77-YVP71M4，WFA77-YVP80M4，WFA77-YVP90M4，WFA77-YVPEJ100M4，WFA77-YVPEJ112M4，WFA77-YVPEJ132M4，WFA77-YVPEJ160M4，WFA77-YVPEJ63M4，WFA77-YVPEJ71M4，WFA77-YVPEJ80M4，WFA77-YVPEJ90M4，GFA79-Y0.18KW，GFA79-Y0.25KW，GFA79-Y0.37KW，GFA79-Y0.55KW，GFA79-Y0.75KW，GFA79-Y1.1KW，GFA79-Y1.5KW，GFA79-Y100M4，GFA79-Y112M4，GFA79-Y11KW，GFA79-Y132M4，GFA79-Y160M4，GFA79-Y2.2KW，GFA79-Y3KW，GFA79-Y4KW，GFA79-Y5.5KW，GFA79-Y63M4，GFA79-Y7.5KW，GFA79-Y71M4，GFA79-Y80M4，GFA79-Y90M4，GFA79-YB100M4，GFA79-YB112M4，GFA79-YB132M4，GFA79-YB160M4，GFA79-YB63M4，GFA79-YB71M4，GFA79-YB80M4，GFA79-YB90M4，GFA79-YDP100M4，GFA79-YDP112M4，GFA79-YDP132M4，GFA79-YDP160M4，GFA79-YDP63M4，GFA79-YDP71M4，GFA79-YDP80M4，GFA79-YDP90M4，GFA79-YE100M4，GFA79-YE112M4，GFA79-YE132M4，GFA79-YE160M4，GFA79-YE63M4，GFA79-YE71M4，GFA79-YE80M4，GFA79-YE90M4，GFA79-YEJ100M4，GFA79-YEJ112M4，GFA79-YEJ132M4，GFA79-YEJ160M4，GFA79-YEJ63M4，GFA79-YEJ71M4，GFA79-YEJ80M4，GFA79-YEJ90M4，GFA79-YEJB100M4，GFA79-YEJB112M4，GFA79-YEJB132M4，GFA79-YEJB160M4，GFA79-YEJB63M4，GFA79-YEJB71M4，GFA79-YEJB80M4，GFA79-YEJB90M4，GFA79-YP100M4，GFA79-YP112M4，GFA79-YP132M4，GFA79-YP160M4，GFA79-YP63M4，GFA79-YP71M4，GFA79-YP80M4，GFA79-YP90M4，GFA79-YPB100M4，GFA79-YPB112M4，GFA79-YPB132M4，GFA79-YPB160M4，GFA79-YPB63M4，GFA79-YPB71M4，GFA79-YPB80M4，GFA79-YPB90M4，GFA79-YPE100M4，GFA79-YPE112M4，GFA79-YPE132M4，GFA79-YPE160M4，GFA79-YPE63M4，GFA79-YPE71M4，GFA79-YPE80M4，GFA79-YPE90M4，GFA79-YS100M4，GFA79-YS112M4，GFA79-YS132M4，GFA79-YS160M4，GFA79-YS63M4，GFA79-YS71M4，GFA79-YS80M4，GFA79-YS90M4，GFA79-YVB100M4，GFA79-YVB112M4，GFA79-YVB132M4，GFA79-YVB160M4，GFA79-YVB63M4，GFA79-YVB71M4，GFA79-YVB80M4，GFA79-YVB90M4，GFA79-YVP100M4，GFA79-YVP112M4，GFA79-YVP132M4，GFA79-YVP160M4，GFA79-YVP63M4，GFA79-YVP71M4，GFA79-YVP80M4，GFA79-YVP90M4，GFA79-YVPEJ100M4，GFA79-YVPEJ112M4，GFA79-YVPEJ132M4，GFA79-YVPEJ160M4，GFA79-YVPEJ63M4，GFA79-YVPEJ71M4，GFA79-YVPEJ80M4，GFA79-YVPEJ90M4。

FA79減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.lbclaser.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F79減速機
